1 aizvietošanas variants atrasts

Esošais Sūknis - Drenāža un kanalizācija

Ražotājs Flygt, ITT, Lowara, Xylem
Produkta nosaukums CP 3057 ø250
Elektropieslēgums 3x400 V
Caurules pieslēgums DN 50

Nomaiņas sūknis Apmaiņats komplekts

Produkta nosaukums Rexa PRO V05-126
Artikula Nr. 6064723
Elektropieslēgums 3x400 V
Caurules pieslēgums DN 50
Nominālā strāva 3,4 A
Nominālā jauda P2 1,5 kW
Šķidruma temperatūras diapazons +3 - +40 °C
Brīvā caurplūde 50

Nomaiņas papildpiederumi

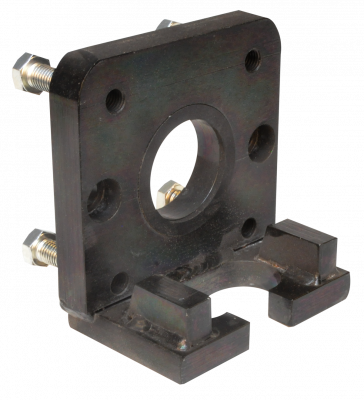

ADAPTER 50 FLYGT
Artikula Nr. 2835072
Numurs 1

Komentāri

Saderīgs ar nomaiņas piederumiem.

Produkta informācija
Rexa PRO V05-126

Rexa PRO V05-126
Artikula Nr.: 6064723

Your advantages
  • Highly efficient thanks to efficiency-optimised, single-channel impellers
  • Reliable operation due to clogging-free vortex impellers.
  • Tested safety. Ex-rated in accordance with ATEX as standard
  • Energy-efficient IE3 motor technology available as an option
Construction
Submersible sewage pump for continuous duty for stationary and portable wet well installation, as well as for stationary dry well installation.

Application
Pumping of:
  • Untreated sewage
  • Sewage containing faeces
  • Wastewater
Equipment/function
  • Leakage detection for the motor compartment
  • Winding temperature monitoring with bimetallic strip
  • Optional external pencil electrode for sealing chamber control
  • Single-phase version with capacitor switchgear
Scope of delivery
  • Submersible sewage pump with 10 m cable
  • Operating and maintenance manual
Technical data
  • Mains connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz
  • Submerged operating mode: S1
  • Non-immersed operating mode: S2-30 min; S3 25%
  • Protection class: IP68
  • Insulation class: F, optionally H
  • Fluid temperature: 3…40 °C, max. 60 °C for 3 min
  • Max. immersion depth: 20 m
  • Cable length: 10 m
Materials
  • Motor housing: EN-GJL-250
  • Hydraulics housing: EN-GJL 250
  • Impeller: EN-GJL 250 or EN-GJS-500-7
  • Static gaskets: NBR
  • Sealing on pump side: SiC/SiC
  • Sealing on motor side: C/MgSiO4
  • Shaft end: Stainless steel 1.4021
Description/construction
Submersible sewage pump as submersible monobloc unit for stationary and portable wet well installation, as well as stationary dry well installation.

Hydraulics
The outlet on the pressure side is designed as horizontal flange connection. The maximum possible dry matter is 8 % (depending on the hydraulics). Vortex and single-channel impellers are used.

Motor
The motor versions used are single-phase current and three-phase current surface-cooled motors. For single-phase current motors, the condenser is installed in a separate switchgear. Depending on performance, activation is carried out via direct startup or star/delta startup.
The motor is cooled by the medium around it (pumped fluid or air). The waste heat is dissipated via the motor housing.

The motors can be immersed during continuous duty (S1). In submerged operation, the operating modes S1 (continuous duty), S2 (short-time duty) or S3 (intermittent) are possible depending on the rated motor power.

Furthermore the motors are equipped with the following monitoring devices:
  • Leakage detection motor compartment: The leakage detection signals water ingress into the motor compartment.
  • Thermal motor monitoring: thermal motor monitoring protects the motor winding against overheating. Bimetallic strips are used for this as standard.
The motor can also be fitted with an external sealing chamber electrode to monitor the sealing chamber. This signals if there is water ingress into the sealing chamber through the mechanical seal on the fluid side.

The connection cable has bare cable ends and a length of 10 m as standard.

Seal
Located between the motor and hydraulics is a sealing chamber with the seal on the fluid and motor side. This sealing chamber is filled with medicinal white oil. The fluid-side and motor-side seals are provided by two mechanical seals which rotate independently of each other.
FLANGE DN50/RP2" STZN KPL.
Artikula Nr.: 4027333
Counterflange:
  • Made of cast iron.
  • Comes complete with flange, bolts and nuts, as well as gaskets.
chainkit PCS 400KG 1.4401 5M CE neutral
Artikula Nr.: 6063136
Chain:
  • Maximum pump weight 400kg.
  • Made of acid-resistant steel (1.4401).
  • Length 5 meters.
PIPE BOW R2/G2 I./A.STZN
Artikula Nr.: 4027332
Elbow:
  • Intended for pumps in the Rexa series.
  • 90 degrees.
HOSE CONNECTION R2"A.INCL.SCHELLE
Artikula Nr.: 4027334
Hose fitting:
  • Intended for submersible pumps. Includes hose clamp.
NON-RETURN-DEVICE DN50 PN10 Z GG25 CPL.
Artikula Nr.: 2017166
Check Valve:
  • Intended for pumps in the Rexa series.
  • Connection DN 50 PN10.
GATE VALVE DN50 PN10 GG25 CPL.
Artikula Nr.: 2017160
Stop Valve:
  • Intended for pumps in the Rexa series.
  • Connection DN 50 PN10.
PRESSURE HOSE ID.60 PN6 SYN.10M CPL.
Artikula Nr.: 2018106
Pressure Hose:
Intended for submersible pumps.
  • 10 m.
  • ø60 mm.
  • Max pressure 6 bar.
Pump foot DN50/65 KIT
Artikula Nr.: 6064666
Bottom foot Rexa:
  • Intended for Rexa pumps with connection DN 50/65.
Wilo-Control MS-Lift 1x4
Artikula Nr.: 2539741

Microprocessor-controlled switchgear for level-dependent control of a submersible pump with float switch for level measurement. The parametrization is carried out using dip switches and potentiometers.
Wilo-Control MS-Lift 2x4
Artikula Nr.: 2539745

Microprocessor-controlled switchgear for level-dependent control of a submersible pump with float switch for level measurement. The parametrization is carried out using dip switches and potentiometers.
Wilo-Control EC-Lift 1x12
Artikula Nr.: 2543210

Microcontroller-controlled switchgear for level-dependent control of a submersible pump with analogue or digital signal transmitters. Individual parameters are entered via symbol-based menu navigation and an operating button.
Wilo-Control EC-Lift 2x12
Artikula Nr.: 2543220

Microcontroller-controlled switchgear for level-dependent control of a submersible pump with analogue or digital signal transmitters. Individual parameters are entered via symbol-based menu navigation and an operating button.
DRAIN ALARM
Artikula Nr.: 2545133

Network-independent alarm switchgear (self-charging power supply unit) for wall fixation with optical and acoustic alarm signal.
LEVEL SENSOR 0-1MWS, 10M CABLE
Artikula Nr.: 2519924

Level sensor with ATEX approval for level control in sewage water containing faeces. A level sensor is used here to measure the hydrostatic pressure in the medium and to convert it directly in the pressure transducer into an electrical signal by means of a diaphragm. The signal is transmitted to the switchgear and evaluated accordingly.
LEVEL SENSOR 0-2,5mWS, 10m CABLE
Artikula Nr.: 2519921

Level sensor with ATEX approval for level control in sewage water containing faeces. A level sensor is used here to measure the hydrostatic pressure in the medium and to convert it directly in the pressure transducer into an electrical signal by means of a diaphragm. The signal is transmitted to the switchgear and evaluated accordingly.
FLOAT SWITCH WA 65 (PSN-O) 5M
Artikula Nr.: 503211390

As a signal transmitter for the system switching, depending on the level of an open container or a cistern.
Switching points: up ON / down OFF
FLOAT SWITCH WA 65 (PSN-O) 10M +VP
Artikula Nr.: 503211893

As a signal transmitter for the system switching, depending on the level of an open container or a cistern.
Switching points: up ON / down OFF
FLOAT SWITCH MS 1
Artikula Nr.: 2004593

Float switches for level control devices as min./max switches for fluids that are aggressive or contain faeces, floats with the fluid and switches when tilted. Because of its construction and switching point, the float switch can exhibit only a very small hysteresis. This property cannot be changed, not even the length of the cable. In order to use the float switch, a switchgear with adjustable run-on time must be used. Switching: up "ON"/down "OFF"
Float switch WA KR1 S
Artikula Nr.: 6082807

As a signal transmitter for the system switching, depending on the level of an open container or a cistern.
Switching points: up ON / down OFF
